High picking rate,capacity,Low break and loss Peanut Picker/Peanut Picker/Peanut Picking Machine/Groundnut Picker DY-300 manufacturer from China HeZhengzhou Diying Machinery Co.,Ltd

High picking rate,capacity,Low break and loss Peanut Picker/Peanut Picker/Peanut Picking Machine/Groundnut Picker

Price:	1500.0~8000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DY-300

Production Capacity: 100/month

Delivery Date: 7---10 days after get prepa...

Means of Transport: Ocean

Packing: wood case

Brand Name: DY

1.Automatic bagging conveyor
2.Can matched with motor and tractor
3.High picking rate

Peanut Picker Advantages:

1.Low break and peanut loss

2.High picking rate and high capacity

3.With automatic bagging conveyor

4.Power can be motor or tractor

Introduction:

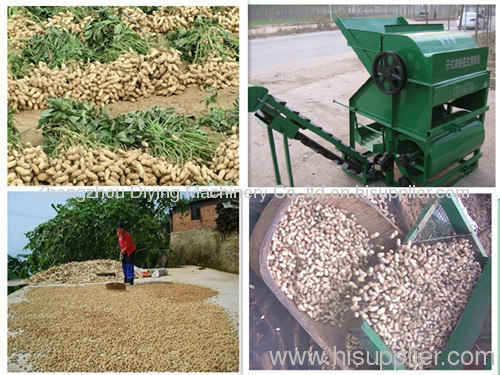

Peanuts pick fruit machine mainly by the frame, motor (diesel engine), transmission parts, pick the fruit from part, vibration mechanism composition. The operation of automatic feeding machine or feed the entrance to pick fruit system, by roller pick choose rod rotation blow peanuts from stem, fruit and sundry through the sieve hole drops to vibrating screen, by the material from the stem mouth, scattered over vibrating screen of noise by vibrating screen to suction fan fruit miscellaneous mouth out impurities, select clean fruit so as to complete the entire process.

Technical Parameters:

Model	DY300	DY500	DY1500
Capacity (kg/h)	≥300	≥550	≥1500
Picking Rate	≥99%	≥99%	≥99%
Broken Rate	≤4%	≤4%	≤4%
Loss Rate	≤ 1%	≤ 1%	≤ 1%
Clean Rate	≥98%	≥98%	≥98%
Power (kw)	4	7.5	15
Overall Weight (kg)	230	540	800
Overall Demission (mm)	17608501350	240036501750	360020001650
